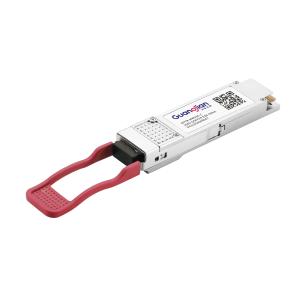

100g ER4 QSFP28 Optical Transceivers Lite 30km 40km DDM LC

Brand Name : Guanglian

Model Number : OPTR-MW53T-C

Place of Origin : China

MOQ : 1 pc

Price : Contact for quotation

Payment Terms : T/T, Net 30 days

Supply Ability : 10K per month

Delivery Time : Contact for lead time

Packaging Details : 10pcs per tray, Support Customization

Certification : ISO9001, ISO14001, RoHs, FCC, CE

Form Factor : QSFP28

Data Rate : 103.125Gbps

Wavelength : 1295nm, 1300nm, 1305nm, 1310nm

Transmission Distance : 30km without FEC, 40km with FEC

Connector : LC Duplex

Cable Type : SMF

Transmitter Type : DML TOSA

Receiver Type : SOA ROSA

DDM/DOM : Supported

Temperature Range : 0 ~ 70°C

Tx Power : -2.5~2.9dBm

Receiver Sensitivity(OMA) : -21.4dBm(5E-5 with FEC), -18.4dBm(1E-12 without FEC)

Power Consumption : ＜4.5W

Extinction Ratio : ＞4dB

Modulation Format : NRZ

Packaging Technology : BOX Packaging

Bit Error Ratio (BER) : 1E-12 without FEC, 5E-5 with FEC

Protocols : QSFP28 MSA Compliant

Application : 100GBASE Ethernet, Data Center, Telecom
